Applications
-
Total condition check for 12V (24V) batteries. (Truck, Marine, Industry etc.)
Battery check, Engine start performance, Charging system tests.
-
Testing Batteries: All types of 12V Lead Acid Batteries.
(VRLA/GEL/EFB/AGM/SPIRAL/MF/Charge Controller battery/Idle Reduction battery(ISS)/Hybrid Auxiliary battery etc.)
-
Measurement Items
- 12V Battery Test
- 12V/24V System Test
-
Functions

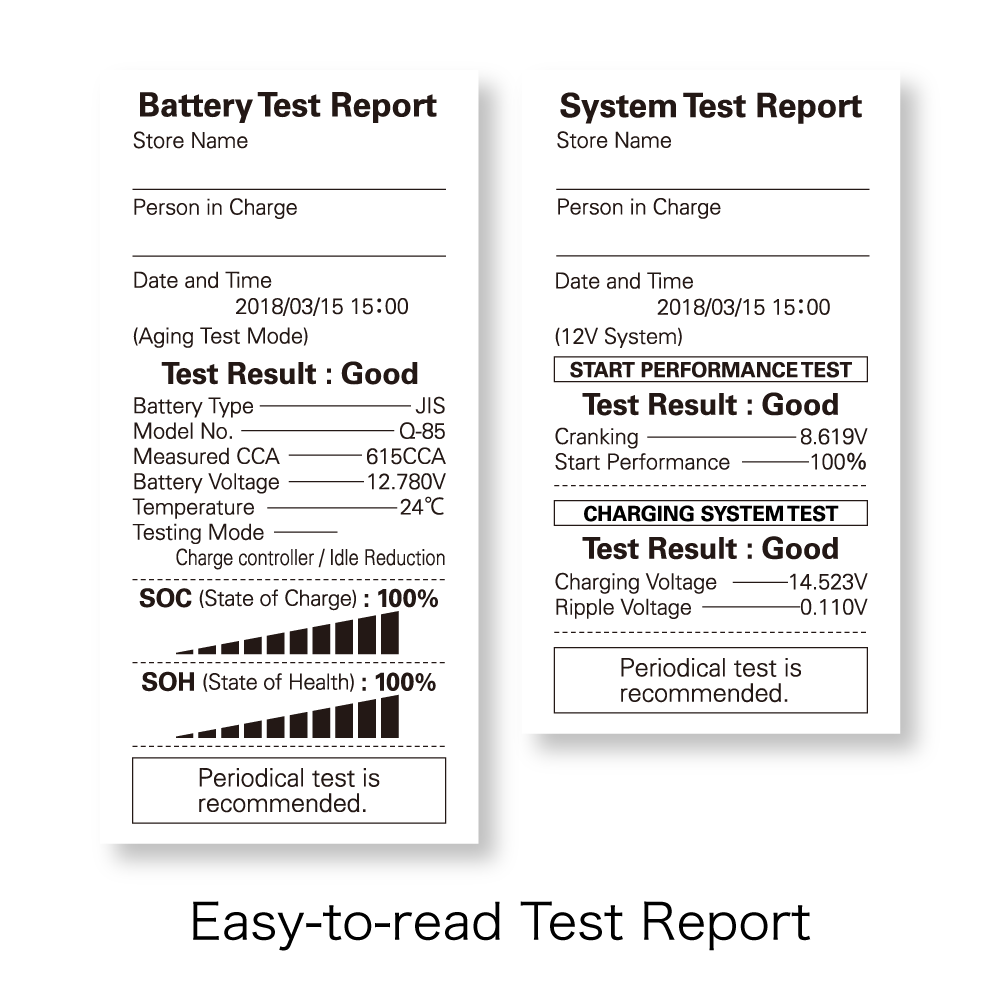

- Print Out

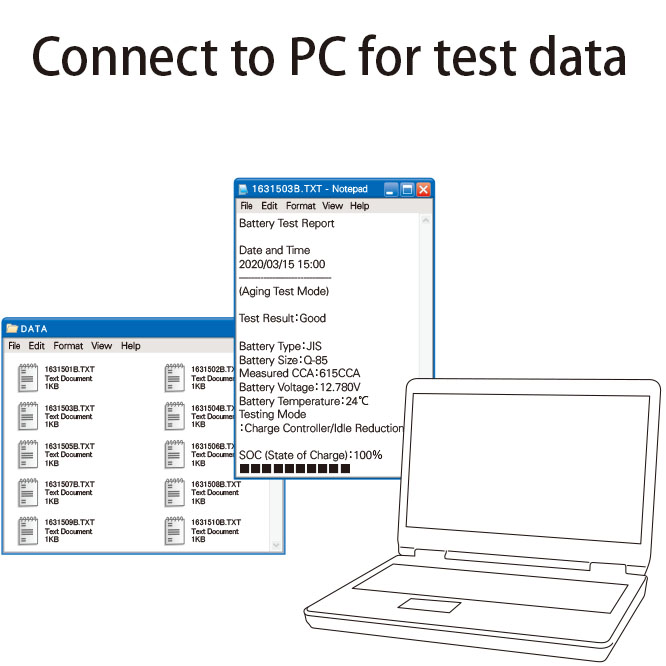

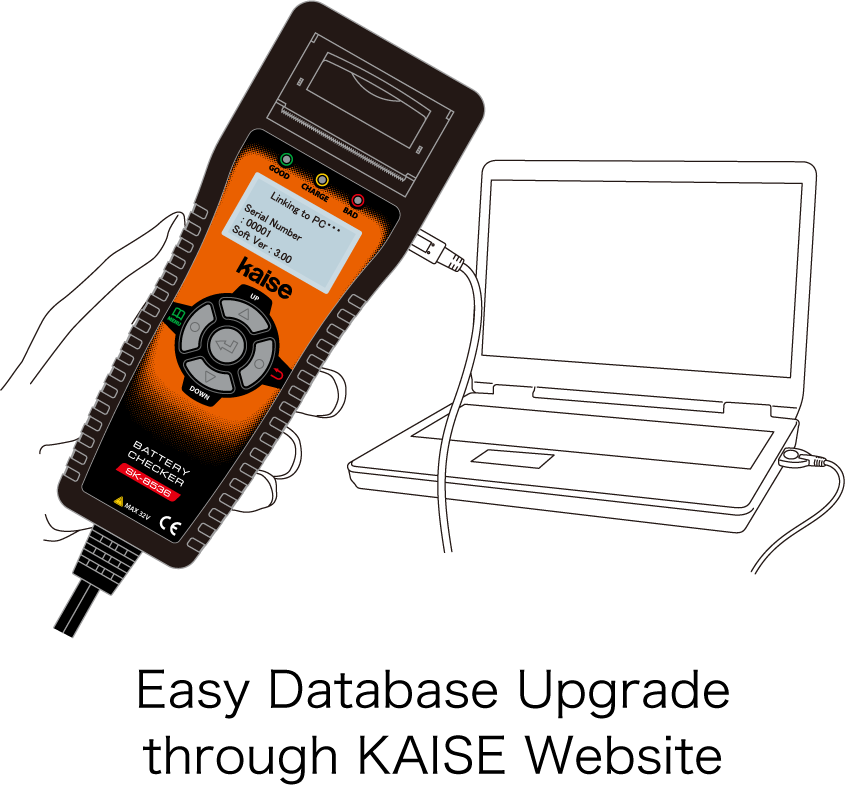

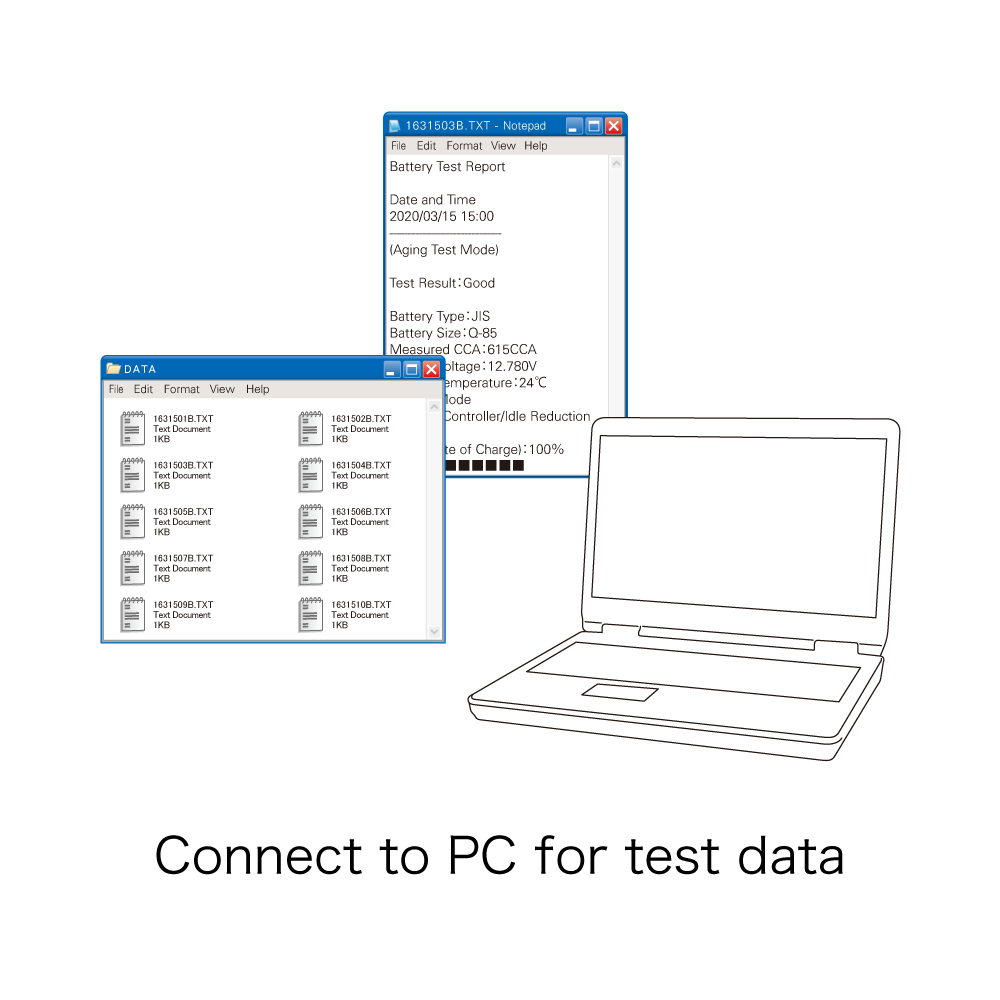

- PC Connection
- Backlight
-
Features
- For the automotive batteries with EN/DIN, SAE/BCI, and JIS/SBA standards.

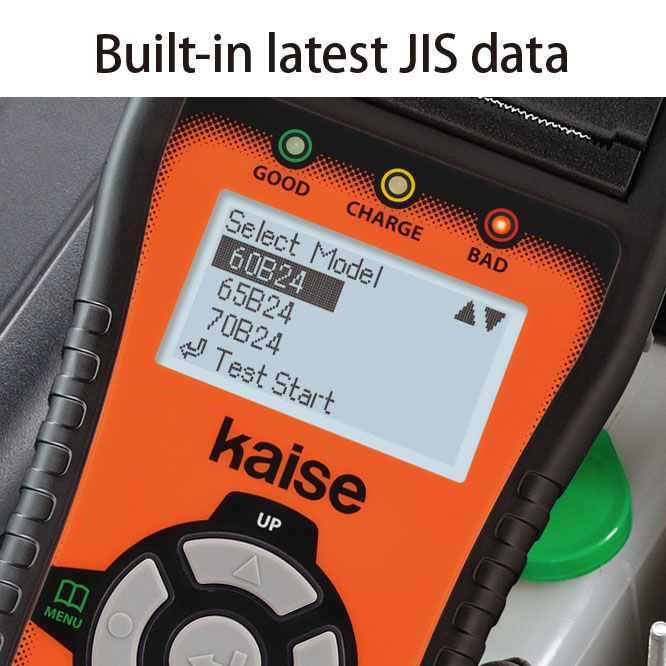

- Built-in battery industry association (SBA) standard format and EN standard (for Japanese cars) database.
- Applicable to the vehicles with Charge Controller or Idle Reduction systems.
- Auxiliary battery test for TOYOTA-Hybrids.
- Attention (Caution) result added.
- Double Dierential Pulse Test Method for more accurate testing.
- Unused Battery Test Mode.

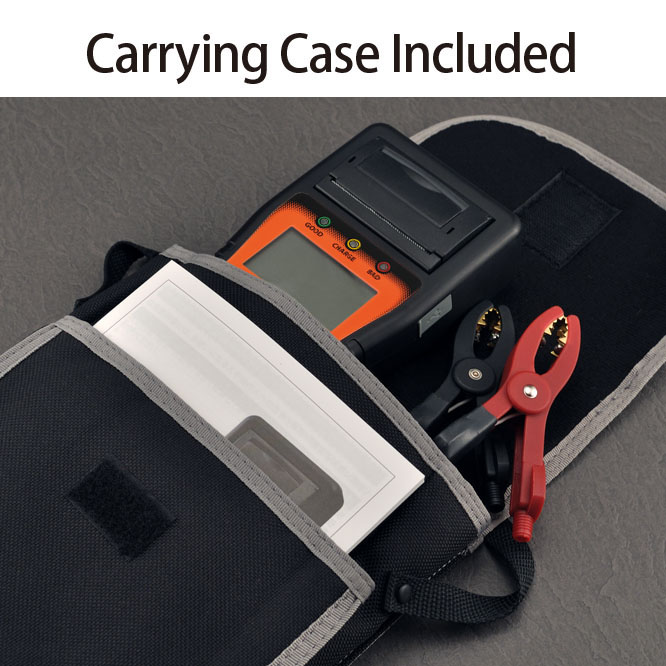

- Carrying Case for Protection.

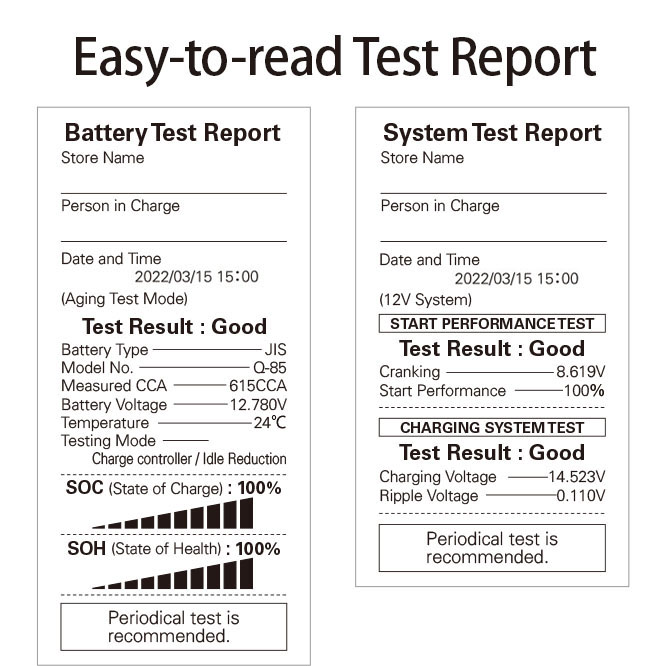

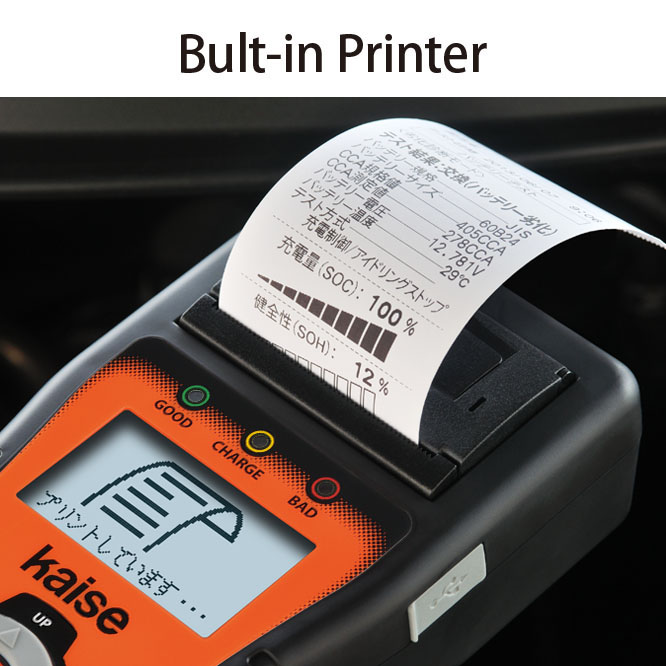

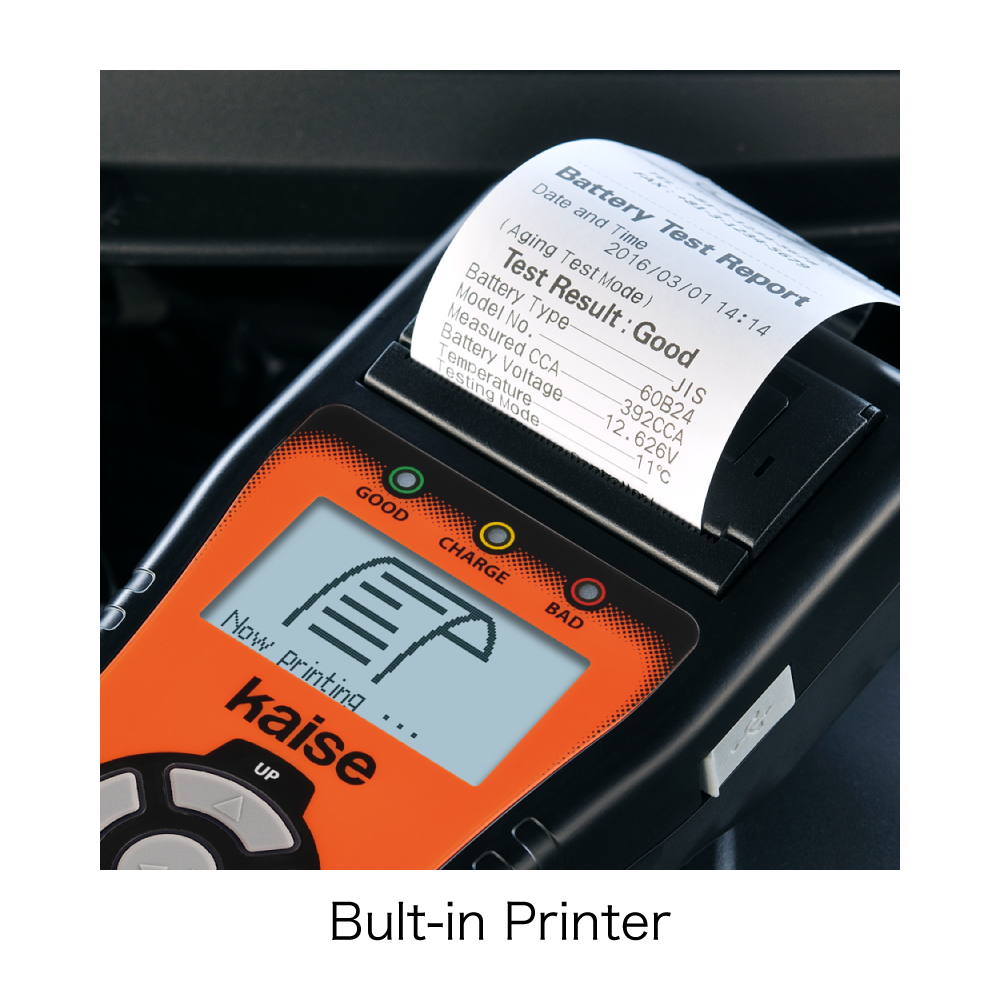

- On-Site Printing with Built-in Printer.

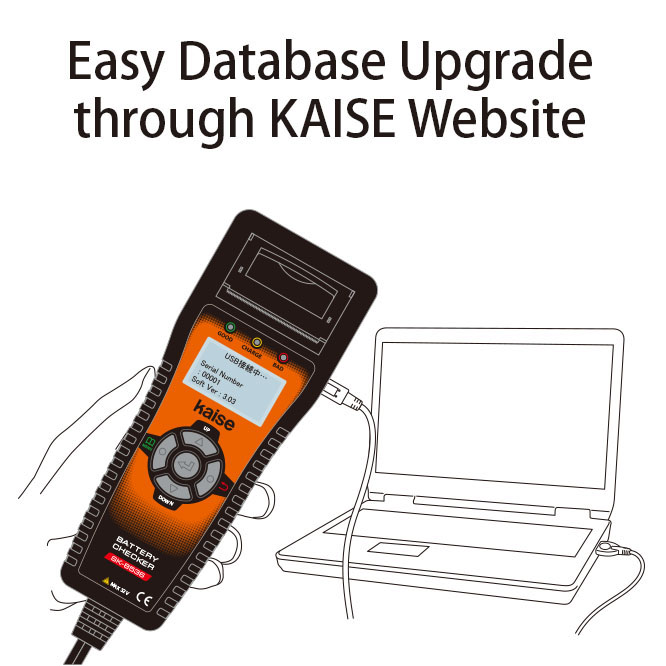

- Easy Database Upgrade through KAISE Website.
-
Specifications

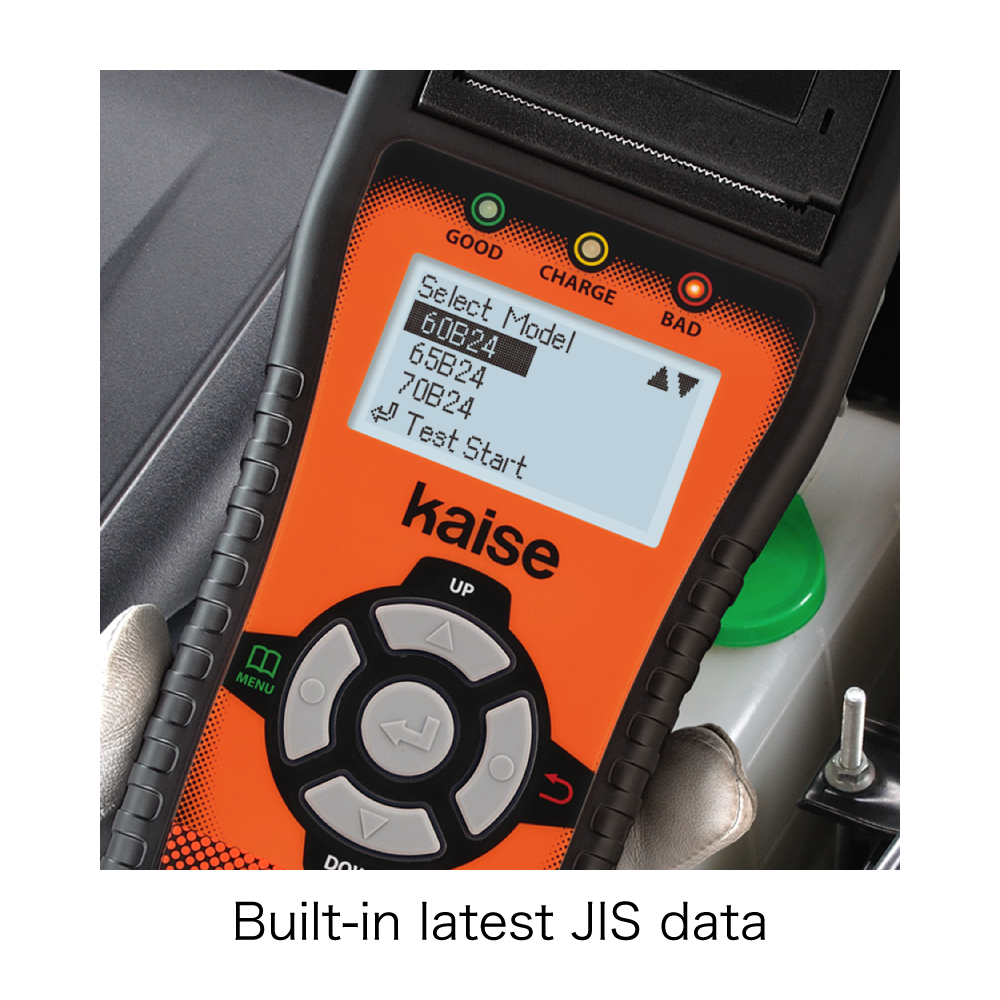

- Display (LCD)
- LCD (dot matrix display :128×64 dots)
- Language (display & print)
- Japanese, English, (Default setting : English)
- Power Supply
- From Test Battery or USB connection
- Testable Battery
- 12V Battery
- Battery Standard
- JIS, SBA, EN / DIN, SAE / BCI
- Measurement Range
- 100 to 1400CCA, Industrial :1.0mΩ to 50.0mΩ
- Dimensions & Weight
- 248(H) x 96(W) x 50(D) mm, Approx. 550g
-

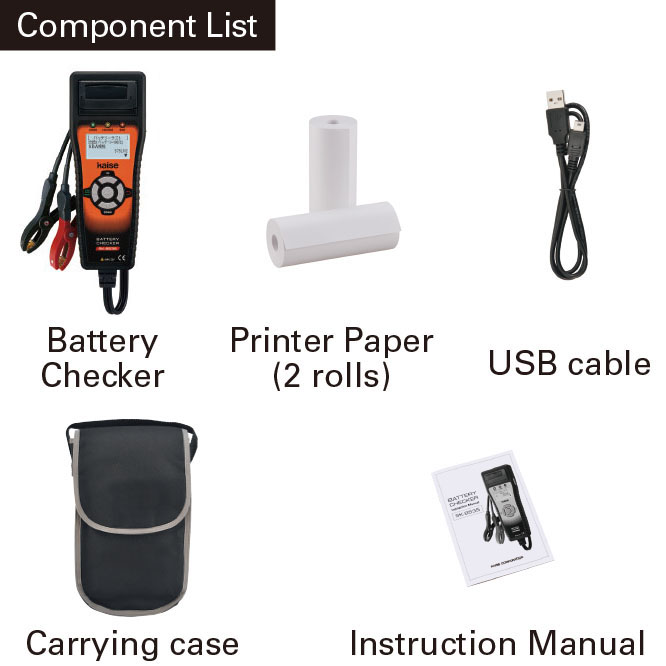

Accessories
-
USB Cable
(934)
-
Printer Paper x 2
(for testing sample)
-
Carrying Case
(1035)
-
Instruction Manual
-
Optional Accessories

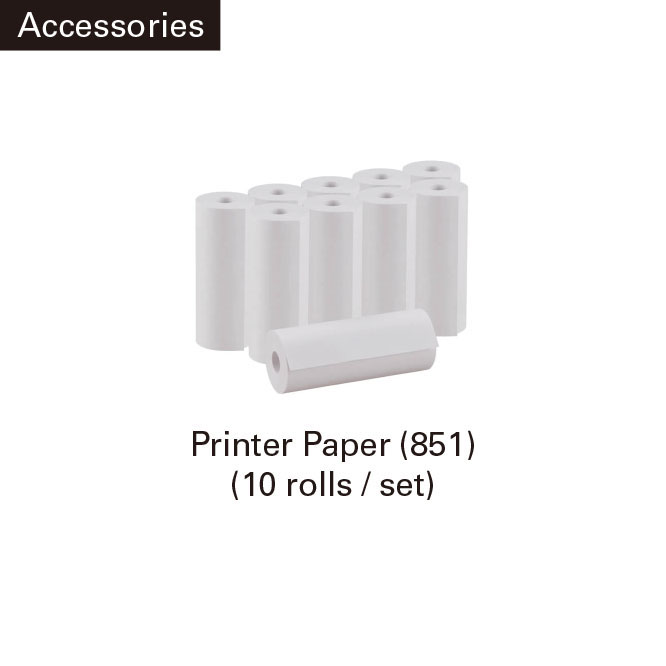

Printer Paper
Wire Brush
