SK-8536Version Upgrade Information
You can download the program file to upgrade for free. Read the procedure below before upgrading.
(Supported OS : Windows XP / vista / 7 / 8 / 10 / 11)
-
-
STEP 1
- Download (Ver.3.52)
- Click the blue download button above to download and save the program data (SK8536_UPDATE_VER352.zip) to your desktop. Please unzip the saved zip file.
-
STEP 2
-
Connect SK-8536 to your PC and open the SK-8536 Removable Disk. (Leave the removable disk empty)

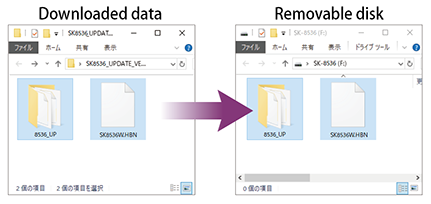

In the folder SK8536_UPDATE_VER352, copy the folder 8536_UP and the file SK8536W.HBN to the removable disk of SK-8536.
-
STEP 3

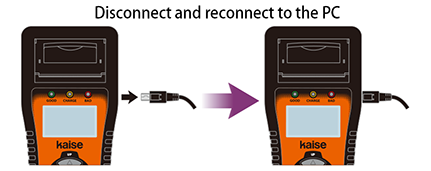

- Disconnect SK-8536 from the PC and reconnect it. Before disconnecting the USB cable, always instruct the PC to disconnect the USB cable. Do not disconnect the USB cable during the update, as the update will start automatically when you reconnect.
-
STEP 4

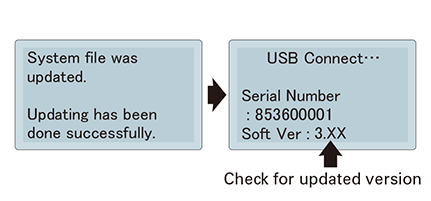

- When the update is complete, the completion screen appears and the machine restarts. If the SoftVer number on the screen is updated to the latest version, the update is complete. Tell the PC to disconnect the USB cable.
-
Version upgrade history
August 26, 2025 (Ver 3.52)
-
- ■ EN standard (for Japanese cars) battery format: 350LN1-F / 350LN1-P / 360LN1 / 370LN2 / 390LN3 added.
- *The update takes time.
June 3, 2024 (Ver.3.51)
-
- ■Idle stop battery format : M-65 / N-70 / N-80 / Q-100 / Q-105 / S-115 / T-125 added
October 18, 2022 (Ver.3.50)
-
- ■Battery Checker SK-8536 Released.
