Dark Current Measurement Just Clamping-On.

SK-7830LOW CURRENT DC CLAMP METER

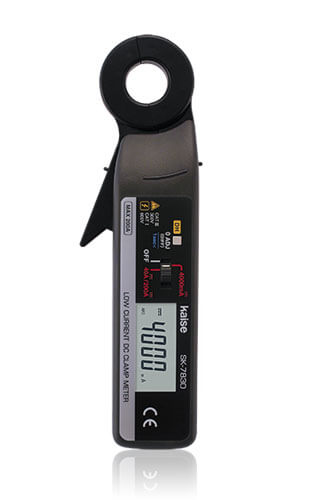

  • SK-7830 Photo
    • 20mm
    • CE

  • Applications

    • Dark current measurement.
    • Alternator charging current measurement.

  • Measurement Items

      • DC A
      • DC Current (200A)

  • Functions

      • DIFF
      • Difference
      • AUTO ZERO
      • Zero Adjustment
      • Display Hold
      • Display Hold
      • Auto Power Off
      • Auto Power Off

  • Features

    • 4000mA DC range for dark current measurement.
    • 40A/200A DC range for normal DC current measurement.
    • Conductor dia. : Φ20mm max.
    • Power-on Initialize (Automatic zero-adjustment function).
    • Noise cut clamp core.
    • Stable LCD reading even in low current.
    • Display hold, Auto power off.

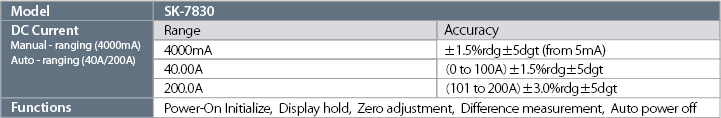

  • Specifications

    • Display (LCD)
    • 4000 count, maximum reading 4050, 12mm high
    • Sampling Rate
    • 64 times / second (Display : 1 time/second)
    • Renge Selection
    • Manual-ranging(4000mA), Auto-ranging(40A/200A)
    • Conductor Diameter
    • φ20mm max.
    • Power Supply
    • 1.5V R6P batteries (x2)
    • CE Mark
    • IEC-61010-1, CATⅢ300V, CATⅠ600V and EMC Test passed.
    • Dimensions & Weight
    • 203(H)x61(W)x30(D)mm, Approx. 230g (including batteries)
