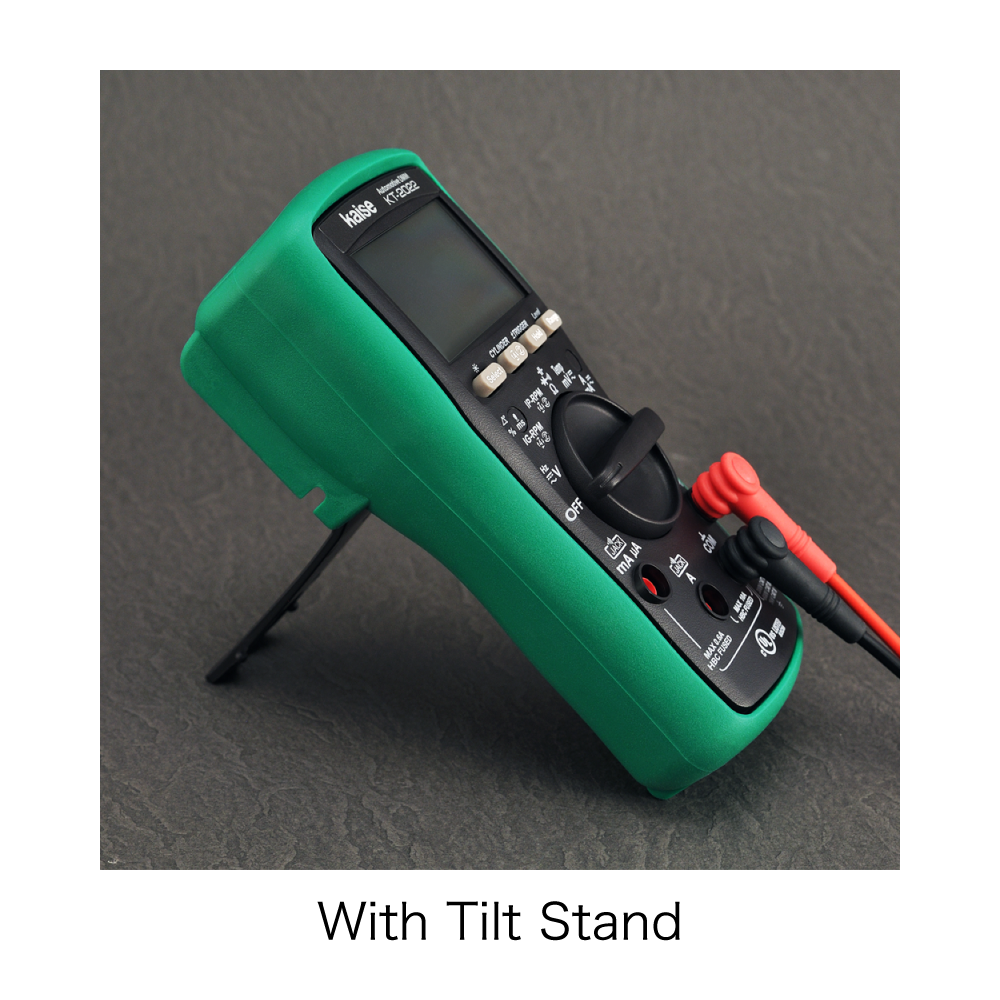

Extremely Versatile Automotive Digital Multimeter.

KT-2022DIGITAL MULTIMETER

Applications

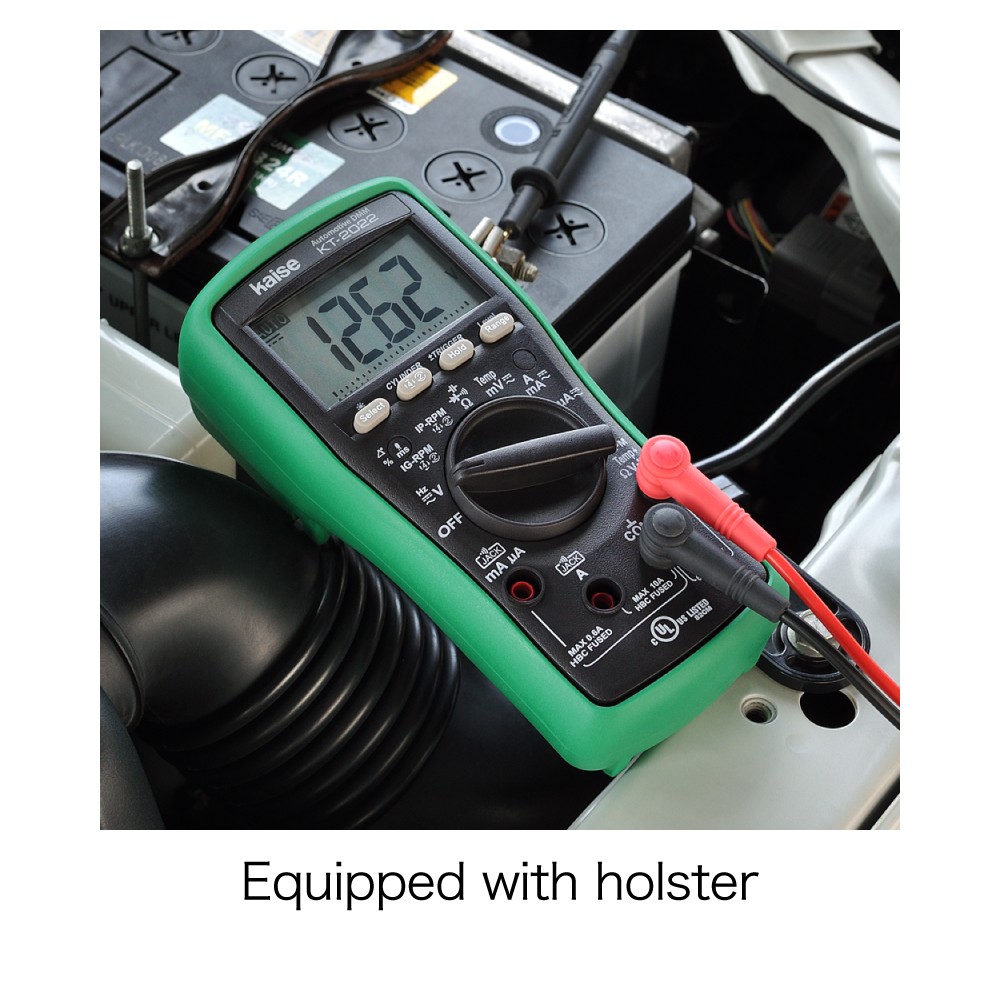

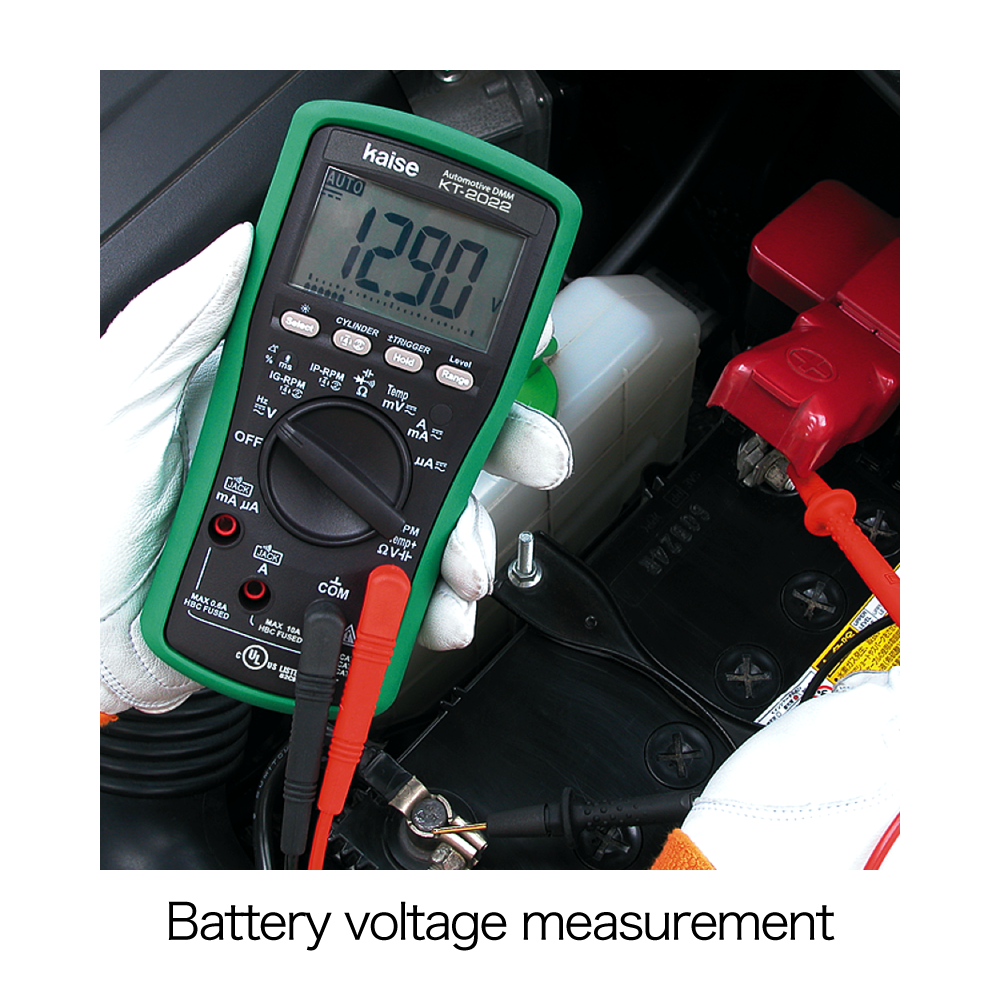

- Battery voltage measurement.

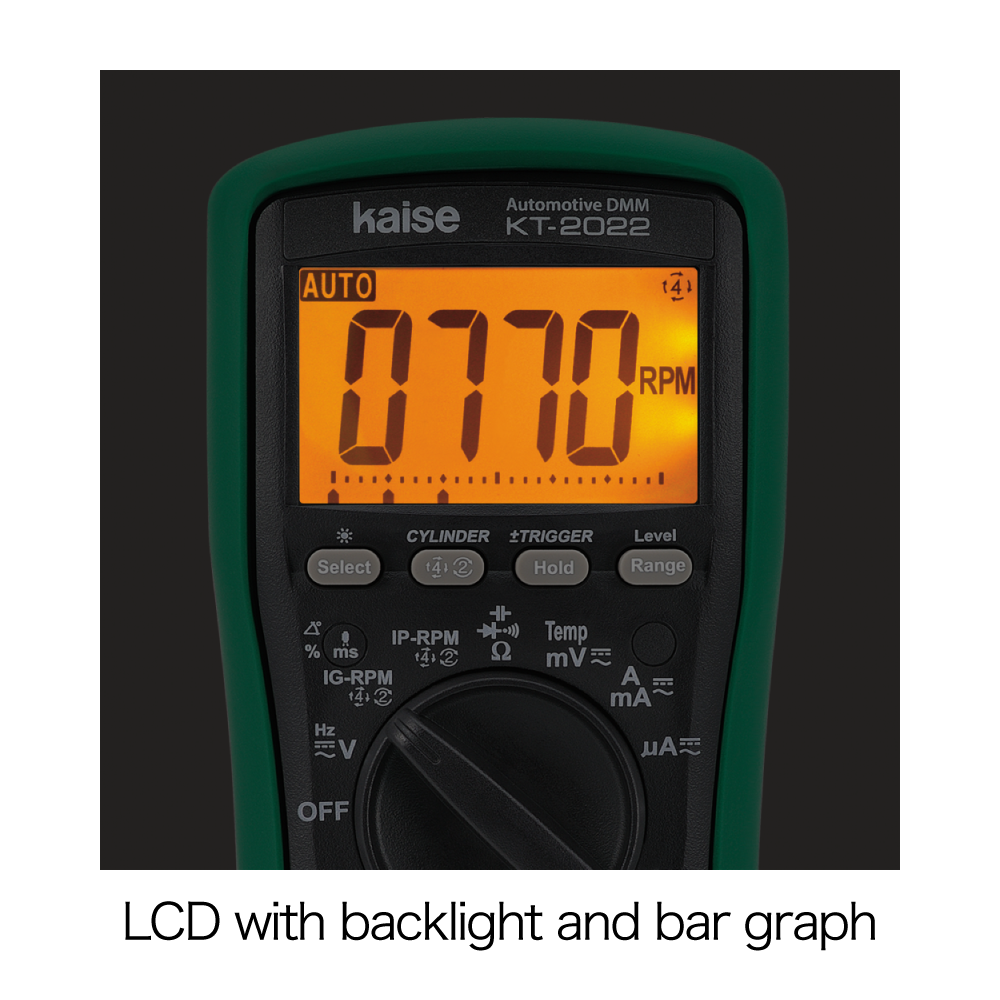

- RPM measurement. (except for rotary and diesel engines & vehicle with MSD or MDI)
- Alternator charging current measurement. (with optional clamp adapter)
Measurement Items
- - AC/DC Voltage
- - AC/DC Current
- - Resistance
- - Frequency
- - Continuity Test
- - Diode Test
- - Duty Cycle
- - Capacitance
- - Temperature
- - RPM
- - Pulse Width
- - Duel Angle
Functions
- - Back Light
- - Bar Graph
- - Display Hold
- - Range Hold
- - Auto Power Off
- - Test Lead Holder
- - Error Input Warning
Features
- For various automotive measurements. (Battery voltage / RPM / Injection pulse width / Alternator charging current measurement / Temperature)
- Large LCD with backlight and bar graph.
- Display hold, Auto power off functions.
- Error input warning.
- Equipped with holster and hard carrying case.
Specifications
- Display (LCD)
- 6000 count LCD
- Sampling Rate
- (Numerical) 5 times / sec, (Bargraph) 40 times / sec
- Renge Selection
- Auto / Manual Ranging
- Power Supply
- 1.5V R03 or AAA Batteries (x 2)
- CE Mark
- CATⅡ1000V, CATⅢ600V, CATⅣ300V AC and DC
- Dimensions & Weight
- 161(H)×80(W)×50(D)mm, Approx. 340g

Measurement Specifications
Measurement specifications are here
Accessories
- Holster
  (attached to the main unit)

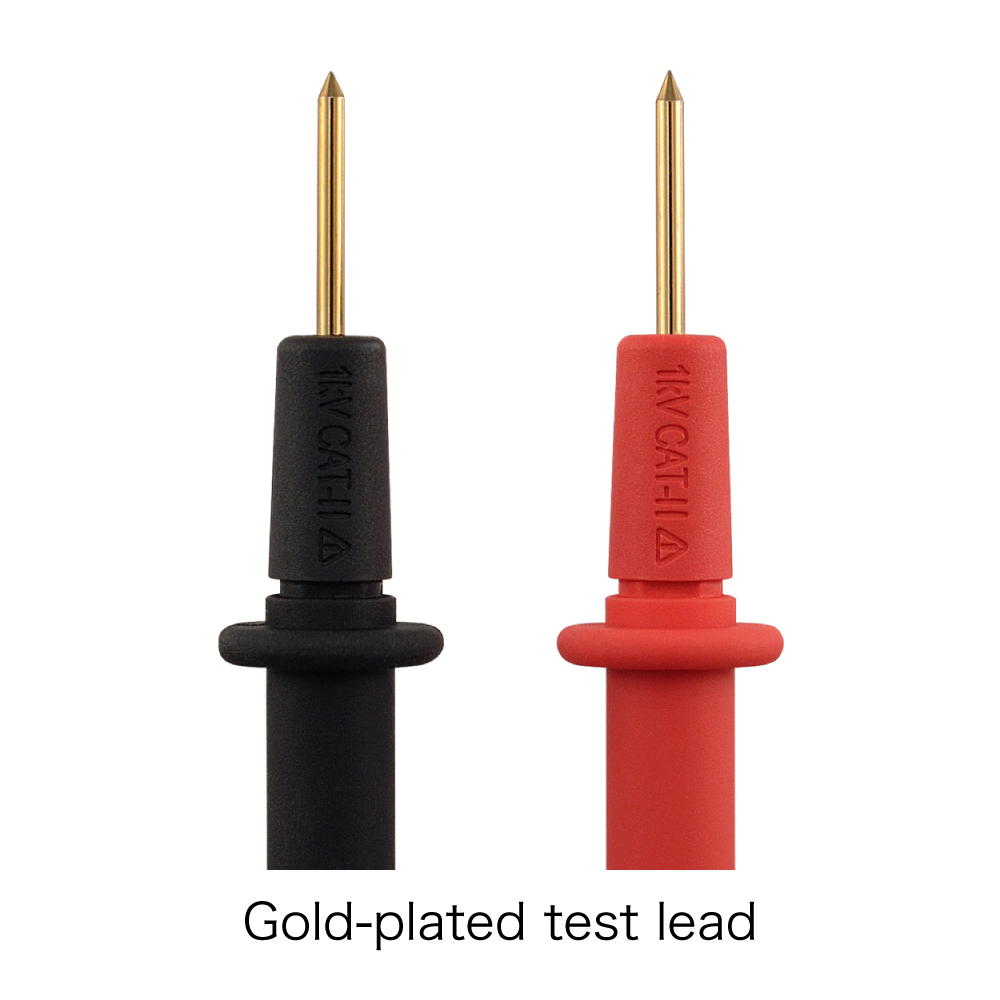

- Test Leads
  （100-66）
- RPM Sensor
  (for Direct Ignition)
  (653)
- RPM Sensor
  (for High Tension Cord)
  (654)
- Temperature
  Probe
  (818-02)
- Alligator Clips
  （943）
- Carrying Case
  （1041）
- 1.5V R03
  Batteries (x 2)
  (installed)
- Spare Fuses F38
  (11A/1000V) (x 1)
- Spare Fuses F39
  (0.4A/1000V) (x 1)
- Instruction Manual
Optional Accessories
Note
- *The only difference from the previous model, KT-2021, is the fuse specification.
