Up to 400A AC/DC measurement in combination with Digital Multimeters.

660AC/DC CLAMP ADAPTER

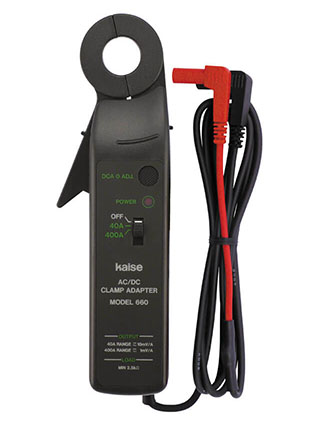

  • 660 Photo
    • 19mm

  • Measurement Items

      • AC/DC A
      • AC/DC Current (400A)

  • Features

    • Connect to a digital tester and measure to AC/DC 400 A.
    • Since the output and input are the same waveform, it can be used for waveform observation and data recording by connecting to an oscilloscope or recorder.
    • Compact clamp with maximum conductor diameter φ 19 mm.
    • Slide switch type that is easy to operate with one hand.
    • Carrying case included.

  • Specifications

    • Renge Selection
    • Manual Ranging
    • Conductor Diameter
    • φ19mm max.
    • Power Supply
    • 1.5V R6P or AA Batteries (x 2)
    • Dimensions & Weight
    • 180(H) x 43(W) x 31(D)mm, Approx. 210g
    • Wire length
    • 145cm

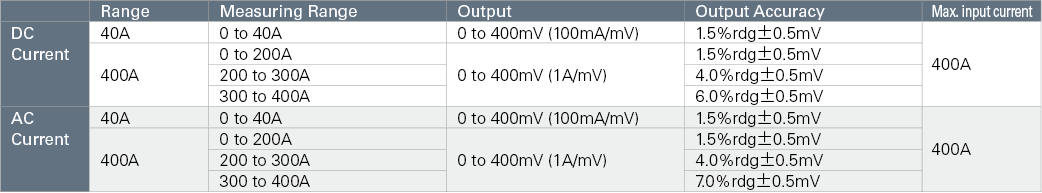

  • Measurement Specifications

    Measurement specifications are here
