2ch Hand-held Oscilloscope Especially for Car Mechanics.

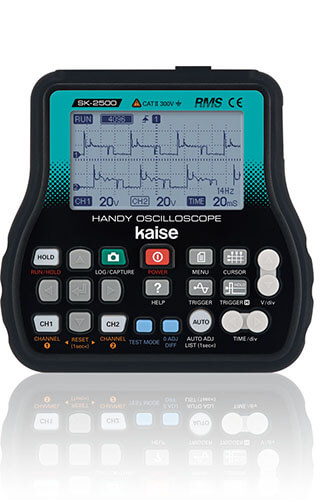

SK-2500HANDY OSCILLOSCOPE
-
Applications
- Waveform monitoring for car sensors and signals.
-
Measurement Items
-
- Voltage Waveform Display
-
- AC/DC Voltage
-
- Resistance
-
- Frequency
-
- Continuity Test
-
- Duty Cycle
-
- Temperature (Option)
-
- Pulse Width
-
- RPM (Option)
-
-
Functions
-
- Data Memory
-
- Back Light
-
- Auto Power Off
-
- Display Hold
-
-
Features
- Car maintenance list - the auto set function for car sensors and signals.
- Auto adjustment for voltage and time axes.
- Rubber holster for shock protection and improved ruggedness.
- Easy-to-use hand-held oscilloscope without special accessories.
- Large-sized luminous key switches with simple operation.
- Help function to support your measurement.
- 2ch waveform display.
- Screen capturing saved as image data.
- Data logger function and data processing on PC.
- Cursor function to check the waveform precisely.
- Trigger function.
- Trigger hold function.
- Digital multimeter function in DMM mode.
- Temperature measurement. (with optional temperature probe)
- Backlight LCD.
- With soft carrying case.
-
Specifications
- Display (LCD)
- Dot matrix LCD (240×128 dots), Display Size : 53mm(H)× 92mm(W)
- Language
- English, Japanese (Default : English)
- Measurement Items
- DC Voltage, AC Voltage, Resistance, Continuity, Frequency, Duty Cycle, Pulse Width, Temperature
- Frequency bandwidth
- DC to 200kHz
- Max. Sampling Rate
- 2MS / sec.
- Number of Channels
- 2 channels
- Acquisition Memory
- 4096points
- Oscilloscope Function
- Graphic waveform display for voltage measurement
- DMM Function
- Displays for DCV, ACV, Resistance, Continuity, Frequency, Duty Cycle, Pulse Width, Temperature
- Internal Power Supply
- 1.5V LR6 or R6P batteries (x 4) (NiMH rechargeable battery usable)
- CE Mark
- EN61010-1 CAT II 300V class 2, EN61326-1
- Dimensions & Weight
- 162(H) × 167(W) × 35(D)mm, Approx. 570g (excluding batteries)
-

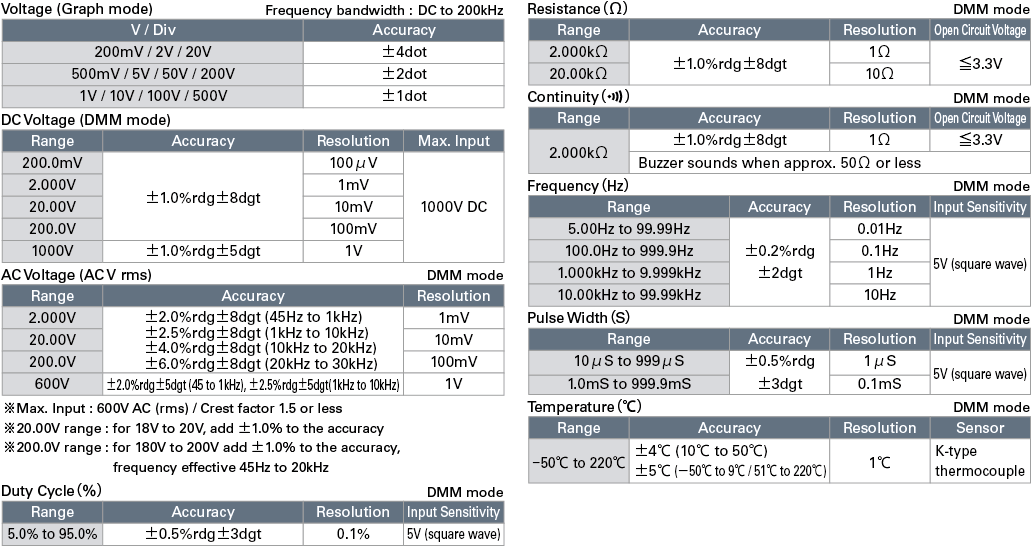

Measurement Specifications
Measurement specifications are here
-
Accessories
-
Holster
(attached to the main unit) -
Test Leads
(100-57) -
AC/DC Adapter
(USB 5V output)
(903) -
USB cable
(934) -
Carrying Case
(1032) -
1.5V R6P
Batteries (x 4) -
Instruction Manual
-
-
Optional Accessories
-
Red Test Lead
(100-57R) -
AC/DC
Clamp Adapter
(660) -
Test Lead Kit
(100-41) -
Test Lead Set
(100-62) -
Oscilloscope
Test Lead Set
(100-72) -
Ripple Voltage
Test Lead
(100-74) -
RPM Sensor
(for High Tension Cord)
(650) -
RPM Sensor
(for Direct Ignition)
(653) -
Coil-Type
Contact Pin
(793) -
Temperature
Probe
(818-02) -
Alligator Clips
(940) -
Test Pin
(944) -
Battery Clip
(946)
-
