True RMS. High Performance.

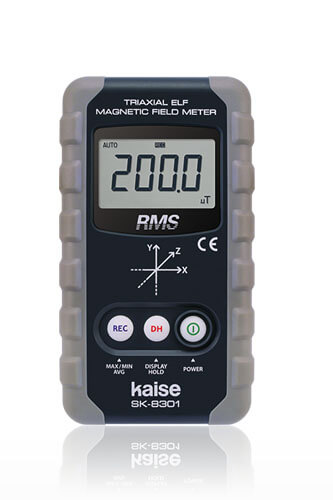

SK-8301TRIAXIAL ELF
MAGNETIC FIELD METER

- Product Catalog
- Instruction Manual
Measurement Items
- Magnetic Flux Density (μT/mG)
Functions
- - MAX/MIN
- - Average
- - Display Hold
- - Auto Power Off

Features
- Accurate measurement by True RMS & Built-in XYZ triaxial sensor.
- For 40Hz to 1kHz magnetic field measurement.
- uT and mG are selectable.
- MAX/MIN and Average measurements.
- Compact and easy-to-carry.
- Easy operation by only 3-keys.
Specifications
- Display (LCD)
- 2000 count LCD, Maximum Reading 2000
- Operating Principle
- Triaxial True RMS (X, Y, Z)
- Sampling Rate
- 2 times / sec
- Renge Selection
- Auto Ranging
- Rectification
- True RMS
- Power Supply
- 1.5V R6P or AA Batteries (x2)
- CE Mark
- EMC test passed
- Dimensions & Weight
- 148(H) x 83(W) x 33(D) mm, Approx. 220g

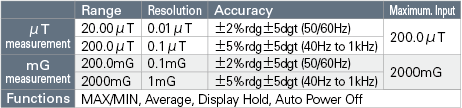

Measurement Specifications
Measurement specifications are here
Accessories
- Carrying Case
  (1015)
- 1.5V R6P Batteries (x2)
- Instruction Manual
