Upgraded Probe Tester with AC/DC-A.

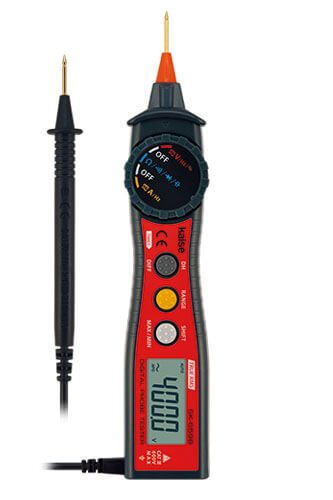

SK-6598DIGITAL MULTIMETER
Probe Tester

  • Discontinued
  • SK-6598 Photo
    • CE

  • Measurement Items

      • AC/DC V
      • AC/DC Voltage
      • AC/DC A
      • AC/DC Current
      • Ω
      • Resistance
      • Frequency
      • Frequency
      • Continuity Test
      • Continuity Test
      • Diode Test
      • Diode Test
      • Duty
      • Duty Cycle
      • Capacitance
      • Capacitance

  • Functions

      • TRUE RMS
      • True RMS
      • MAX/MIN
      • MAX/MIN
      • DIFF
      • Difference
      • Display Hold
      • Display Hold
      • Range Hold
      • Range Hold
      • Auto Power Off
      • Auto Power Off

  • Features

    • Current measurement up to AC / DC 400mA.
    • True RMS.
    • The frequency of 30 kHz can be measured when measuring AC voltage.

  • Specifications

    • Display (LCD)
    • 4000 count LCD
    • Sampling Rate
    • 3 times / sec
    • Renge Selection
    • Auto / Manual Ranging
    • Power Supply
    • 1.5V LR44 Battery (x2)
    • CE Mark
    • CATⅢ 600V and EMC
    • Dimensions & Weight
    • 209(H) x 38(W) x 32(D) mm, Approx. 110g (include battery)

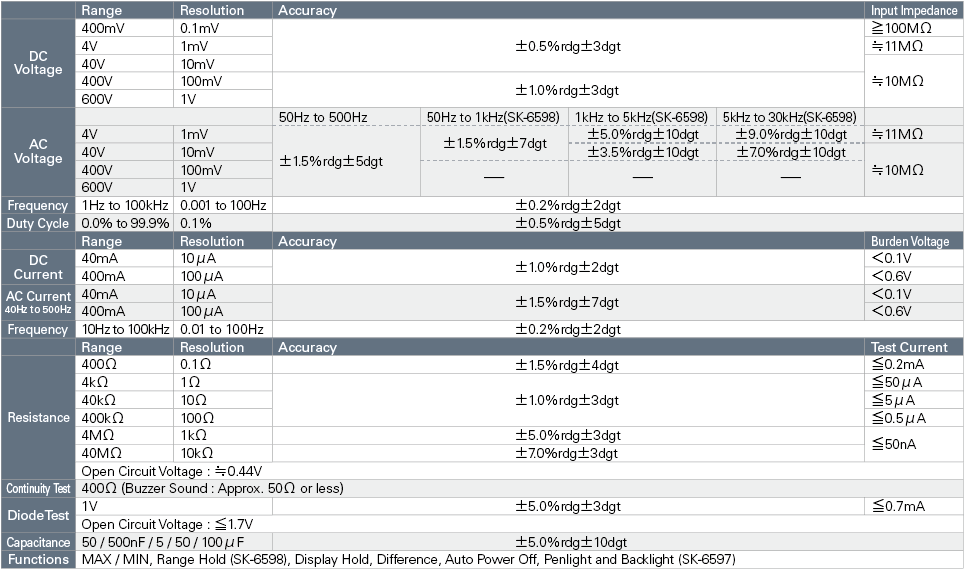

  • Measurement Specifications

    Measurement specifications are here
