KAISE CORPORATION

AC Leakage Clamp Meter

AC Leak and Load Current Testing.

CE SK-7825 Photo

Photo : SK-7825

SK-7820



SK-7825



Product Catalog Instruction Manual

Features

  • Wide range from 40mA to 100A AC,
  • Conductor dia. : φ24mm max (SK-7820), φ40mm max (SK-7825)
  • AC voltage measurement.
  • Vibration alert comparator.
  • (The function to show the comparator result by buzzer and vibration which is convenient in
  • noisy surroundings.)

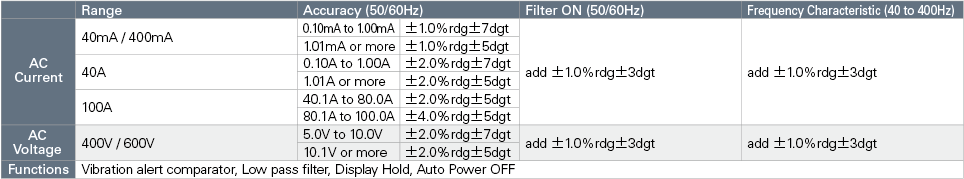

General Specifications

  • Display (LCD)
  • Sampling Rate
  • Renge Selection
  • Conductor Diameter

  • Power Supply
  • Dimensions & Weight

  • Accessories

  • Optional Accessories
  • : 4000 count LCD, Maximum reading 4050
  • : 2 times / sec
  • : Auto Ranging (mA / A : switch selection)
  • : SK-7820 : φ24mm Max.
  • SK-7825 : φ40mm Max.
  • : 1.5V (L) R03 or AAA Batteries (x2)
  • : SK-7820 : 168(H) x 58(W) x 27(D) mm, Approx. 170g
  • SK-7825 : 184(H) x 58(W) x 27(D) mm, Approx. 180g
  • : 100-63 Test Leads, 1020 Carrying Case, 1.5V LR03 Batteries (x2),
  • Instruction Manual
  • : 940 Alligator Clips, 948 Alligator Clips, 793 Coil-Type Contact Pin
