2 Channel Measurements on Dual Display LCD and Oscilloscope Connection.
SK-7720/7722AC/DC
DIGITAL CLAMP METER
-
Measurement Items
-
- AC/DC Current (1000A)
-
- AC/DC Voltage
-
- Resistance
-
- Frequency
-
- Duty Cycle
-
- Pulse Width
-
- Temperature
-
-
Functions
-
- True RMS
-
- Backlight (SK-7720)
-
- Peak Hold
-
- MAX/MIN
-
- Difference
-
- Display Hold
-
- Auto Power Off (SK-7722)
-
- Output (SK-7722)
-
- Dust Proof
-
- Simple Water Resistant
-
-
Features
- Up to 1000A AC/DC.
- Conductor dia. : Φ36mm max.
- Dual measurement and display. (Two electrical elements can be measured together)
- Peak hold and MAX/MIN functions.
- Temperature Measurement.
- Dust proof and water resistant.
- Analog output terminal (SK-7722) .
-
Specifications
- Display (LCD)
- 4000 count LCD, Maximum reading 9999
- Sampling Rate
- 15 times / second (each channel), 3.75 times / second. for DCA+DCV measurements in ordinary mode.
- Renge Selection
- Auto Ranging
- Conductor Diameter
- φ36mm Max.
- Power Supply
- 9V 6F22 or NEDA 1604 Battery (x 1)
- Dimensions & Weight
- 200(H) x 64(W) x 33(D)mm, Approx. 310g
-

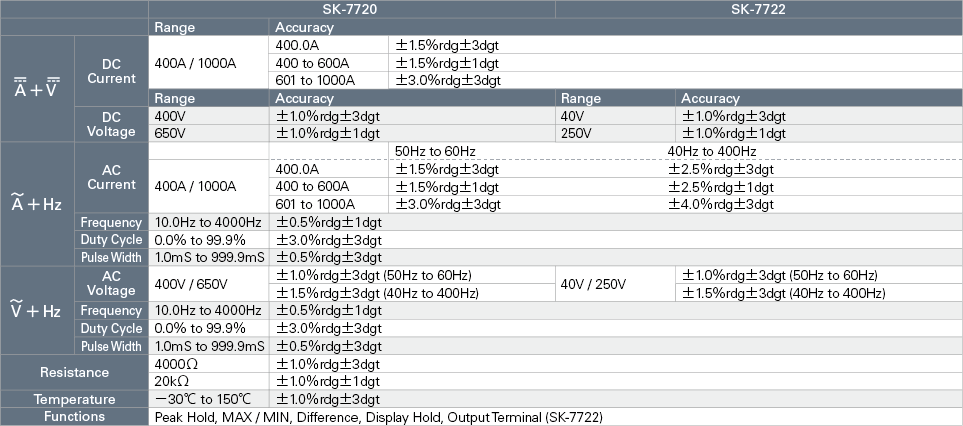

Measurement Specifications
Measurement specifications are here
-
Accessories
-
Test Leads
(100-57) -
Carrying Case
(1007) -
9V 6F22 Battery (x1)
-
Instruction Manual
-
-
Optional Accessories
-
Temperature Probe
(818-02) -
DC Adapter Cable
(922)
(SK-7722) -
Output Cord for
Recorder (930)
(SK-7722) -
Test Lead Kit
(100-41) -
Test Lead Set
(100-62) -
Coil-Type
Contact Pin
(793) -
Alligator Clips
(940) -
Alligator Clips
(948)
-
-
Note
-
*Auto Power Off function has been added to the SK-7722. (Applicable products: Serial Number 11464 and later)
The power will turn off automatically about 15 minutes after the last operation.
How to turn it off: Turn the power on while holding down the DH key. (APO Off) - *818 Temperature Probe is discontinued. Models after S/N 009619 can use 818-02 Temperature Probes.
-
*Auto Power Off function has been added to the SK-7722. (Applicable products: Serial Number 11464 and later)
