Powerful for Every Measurement up to 2000A.

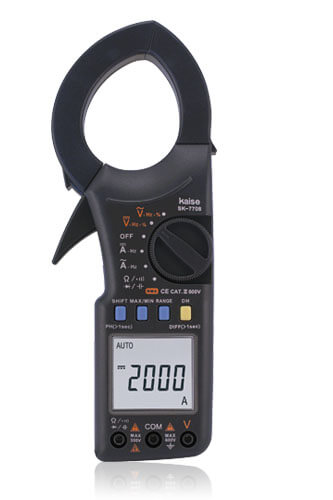

SK-7708AC/DC
DIGITAL CLAMP METER
-
Measurement Items
-
- AC/DC Current (2000A)
-
- AC/DC Voltage
-
- Resistance
-
- Frequency
-
- Continuity Test
-
- Diode Test
-
- Duty Cycle
-
- Capacitance
-
-
Functions
-
- True RMS
-
- Peak Hold
-
- MAX/MIN
-
- Difference
-
- Display Hold
-
- Range Hold
-
- Zero Adjustment (DCA)
-
- Auto Power Save
-
- Dust Proof
-
- Simple Water Resistant
-
-
Features
- Up to 2000A AC/DC.
- Conductor dia, : Φ55mm max.
- True RMS.
- "Power-on initialize" (auto zero adjustment).
- Peak hold, MAX/MIN measurements.
- Dust proof and water resistant.
-
Specifications
- Display (LCD)
- 4000 count LCD, Maximum reading 5120
- Sampling Rate
- 3 times / second
- Renge Selection
- Auto / Manual Ranging
- Conductor Diameter
- φ55mm Max.
- Power Supply
- 9V 6F22 Battery (x 1)
- CE Mark
- CATⅢ 600V and EMC
- Dimensions & Weight
- 250(H) x 92(W) x 39(D) mm, Approx. 500g
-

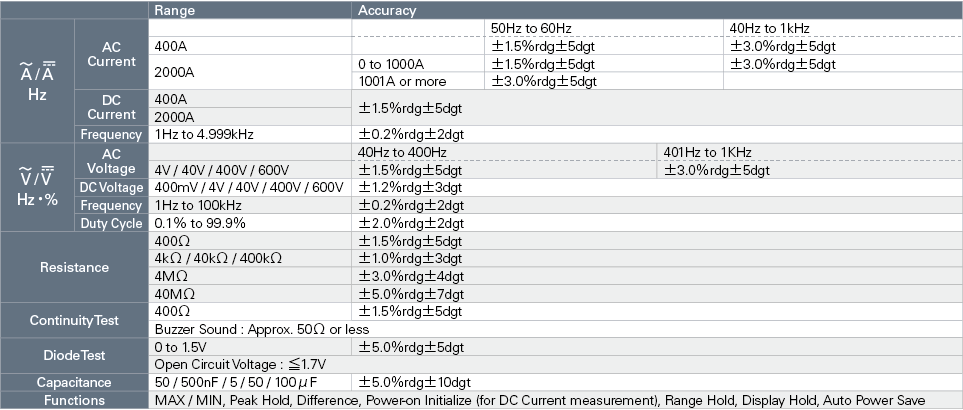

Measurement Specifications
Measurement specifications are here -
Accessories
-
Test Leads
(100-57) -
Carrying Case
(1007) -
9V 6F22 Battery (x1)
-
Instruction Manual
-
-
Optional Accessories
