Basic Clamps with Wide Measurement Ranges.

SK-7615AC
DIGITAL CLAMP METER

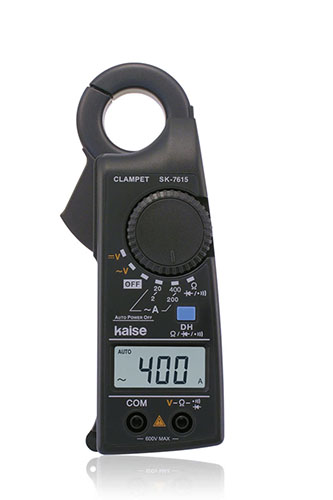

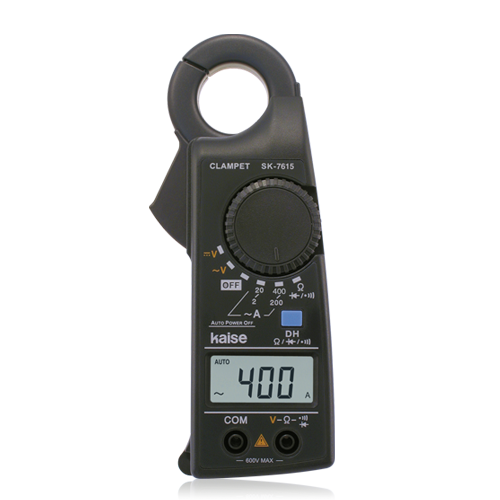

  • SK-7615 Photo
    • 26mm

  • Measurement Items

      • AC/DC A
      • AC Current (400A)
      • AC/DC V
      • AC/DC Voltage
      • Ω
      • Resistance
      • Continuity Test
      • Continuity Test
      • Diode Test
      • Diode Test

  • Functions

      • DISP HOLD
      • Display Hold
      • APO
      • Auto Power Off

  • Features

    • Up to 400A AC
    • Conductor dia. : φ26mm max
    • Round clamp head for accurate measurement.

  • Specifications

    • Display (LCD)
    • 2000 count LCD, Maximum reading 1999
    • Sampling Rate
    • 3 times / sec
    • Renge Selection
    • Auto Ranging (two-ranges auto for ACA)
    • Conductor Diameter
    • φ26mm max.
    • Power Supply
    • 1.5V LR-44 Batteries (x2)
    • Dimensions & Weight
    • 171(H) x 72(W) x 35(D) mm, Approx. 180g

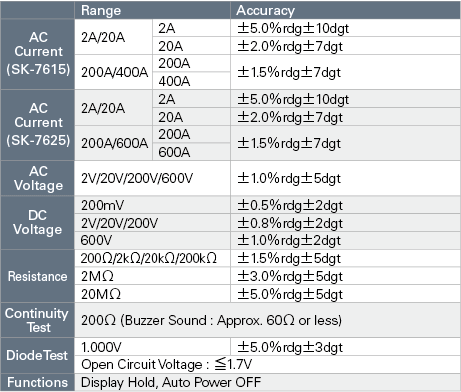

  • Measurement Specifications

    Measurement specifications are here
