Multi-Functional Clamp with Long Battery Life.

SK-7602AC
DIGITAL CLAMP METER

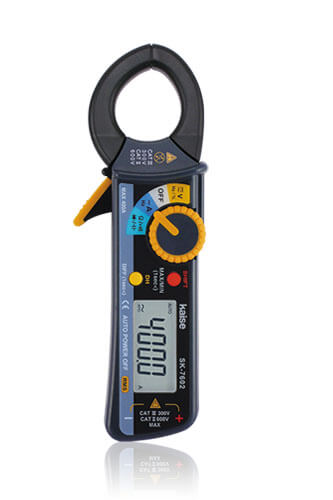

  • SK-7602 Photo
    • TRUE RMS
    • 27mm
    • CE

  • Functions

      • TRUE RMS
      • True RMS
      • MAX/MIN
      • MAX/MIN
      • DIFF
      • Difference
      • DISP HOLD
      • Display Hold
      • APO
      • Auto Power Off

  • Features

    • Up to 400A AC.
    • Conductor dia. : Φ27mm max.
    • True RMS.
    • 13 functions in one small package.
    • MAX/MIN, and Difference measurement.
    • Rubber-molded rotary switch and trigger.
    • Long Time measurement (220 hours for Alkaline cells).

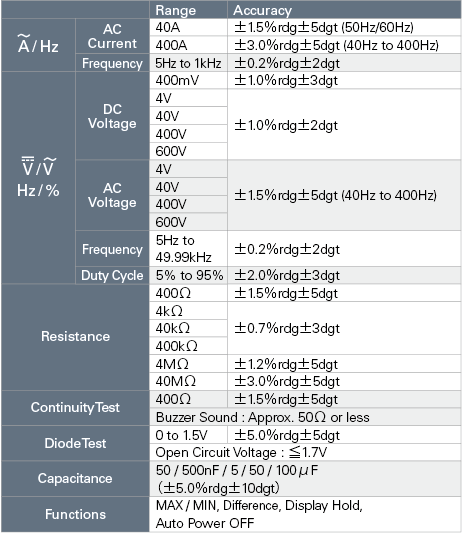

  • Specifications

    • Display (LCD)
    • 4000 count LCD, Maximum reading 4050
    • Sampling Rate
    • 3 times / sec
    • Renge Selection
    • Auto Ranging
    • Conductor Diameter
    • φ27mm max.
    • Power Supply
    • 1.5V R03 or AAA Batteries (x2)
    • CE Mark
    • CATⅢ 300V, CATⅡ 600V and EMC
    • Dimensions & Weight
    • 171(H) x 58(W) x 27(D)mm, Approx. 140g
