Pocket-sized Clamp Meter.

SK-7601AC
DIGITAL CLAMP METER

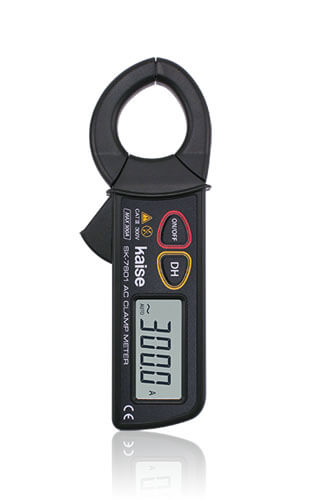

  • SK-7601 Photo
    • 35mm
    • CE
  • Measurement Items

      • AC A
      • AC Current (300A)
  • Functions

      • DISP HOLD
      • Display Hold
      • APO
      • Auto Power Off
  • Features

    • Up to 300A AC.
    • Conductor dia. : Φ27mm max.
    • Compact size clamp neatly fit in your hand.
    • Twist-resistant beaked clamp head.
    • Auto power off.
    • Display hold.
  • Specifications

    • Display (LCD)
    • 4000 count LCD, Maximum reading 4000
    • Sampling Rate
    • 2.5 times / sec
    • Renge Selection
    • Auto Ranging
    • Conductor Diameter
    • φ37mm Max.
    • Power Supply
    • 3V CR2032 Battery (x1)
    • CE Mark
    • CATⅢ 300V and EMC
    • Dimensions & Weight
    • 150(H) x 52(W) x 24(D)mm, Approx. 110g
  • Measurement Specifications

    Measurement specifications are here
  • Accessories

    • 1004 Photo Carrying Case
      (1004)
    • Batteries Photo 3V CR2032
      Battery (x1)
    • Instruction Manual Photo Instruction Manual
