Versatile Clamp Meter, Compactly Designed.

SK-7718AC/DC
DIGITAL CLAMP METER

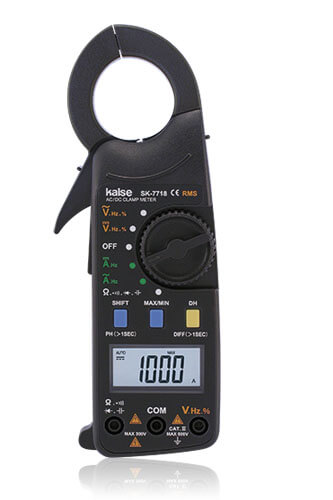

  • SK-7718 Photo
    • TRUE RMS
    • 35mm
    • CE

  • Applications

    • Alternator charging current measurement.
    • Battery voltage measurement.
    • Starter current measurement.

  • Measurement Items

      • AC/DC A
      • AC/DC Current (1000A)
      • AC/DC V
      • AC/DC Voltage
      • Ω
      • Resistance
      • Frequency
      • Frequency
      • Continuity Test
      • Continuity Test
      • Diode Test
      • Diode Test
      • Duty
      • Duty Cycle
      • Capacitance
      • Capacitance

  • Functions

      • TRUE RMS
      • True RMS
      • PEAK HOLD
      • Peak Hold
      • MAX/MIN
      • MAX/MIN
      • DIFF
      • Difference
      • DISP HOLD
      • Display Hold
      • AUTO ZERO
      • Zero Adjustment (DCA)
      • APO
      • Auto Power Off
      • DUST PROOF
      • Dust Proof
      • Simple Water Resistant
      • Simple Water Resistant

  • Features

    • Up to 1000A AC/DC.
    • Conductor dia. : Φ35mm max.
    • Power-on Initialize (Automatic zero-adjustment function).
    • Peak Hold.
    • MAX/MIN and difference measurements.

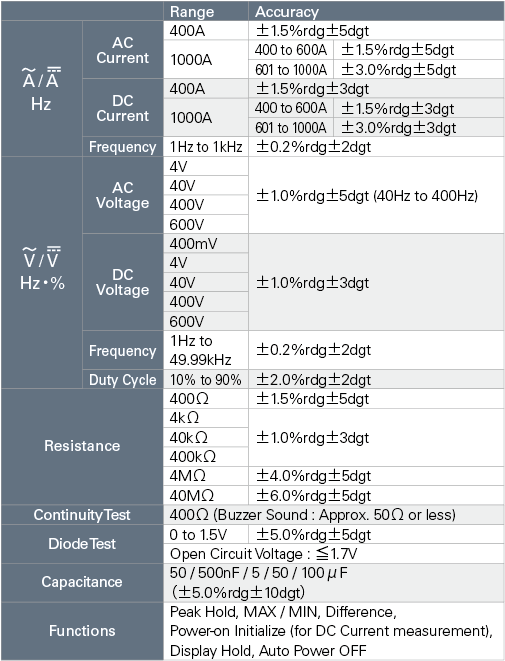

  • Specifications

    • Display (LCD)
    • 4000 count LCD, Maximum reading 9999
    • Sampling Rate
    • 3 times / second
    • Renge Selection
    • Auto Ranging
    • Conductor Diameter
    • φ35mm Max.
    • Power Supply
    • 9V 6F22 Battery (x 1)
    • CE Mark
    • CATⅢ 600V and EMC
    • Dimensions & Weight
    • 193(H) x 60(W) x 34.5(D)mm, Approx. 300g
