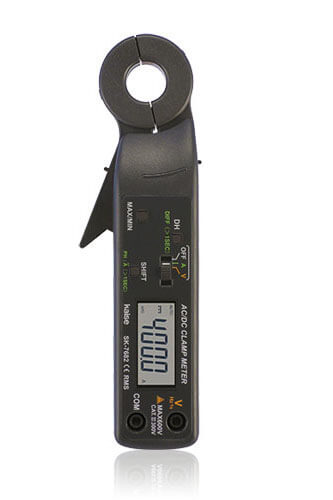

SK-7682AC/DC
DIGITAL CLAMP METER
- Discontinued
-
Applications
- Alternator charging current measurement.
- Battery voltage measurement.
-
Measurement Items
-
- AC/DC Current(400A)
-
- AC/DC Voltage
-
- Frequency
-
- Duty Cycle (Voltage Measurement)
-
-
Functions
-
- True RMS
-
- Peak Hold
-
- MAX/MIN
-
- Difference
-
- Display Hold
-
- Zero Adjustment (DCA)
-
- Auto Power Off
-
-
Features
- Up to 400A AC/DC.
- Conductor dia. : Φ19mm max.
- Power-on Initialize (Automatic zero-adjustment function).
- Peak Hold function.
- Simple switch operation for easy of use.
- Slim clamp core for easy clamping of narrow conductors.
-
Specifications
- Display (LCD)
- 4000 count LCD, Maximum reading 4050
- Sampling Rate
- 3 times / second
- Renge Selection
- Auto Ranging
- Conductor Diameter
- φ19mm Max.
- Power Supply
- 1.5V R6P or AA Batteries (x 2)
- CE Mark
- CATⅢ 300V and EMC
- Dimensions & Weight
- 196(H) x 59(W) x 30(D)mm, Approx. 180g
-

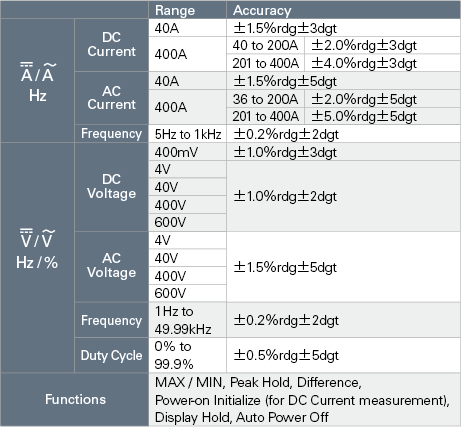

Measurement Specifications
Measurement specifications are here -
Accessories
-
Test Leads
(100-57) -
Alligator Clips
(940) -
Carrying Case
(1011) -
1.5V R6P
Batteries (x 2) -
Instruction Manual
-
-
Optional Accessories
