Handy-size Clamps with Efficient Functions.

SK-7661AC/DC
DIGITAL CLAMP METER

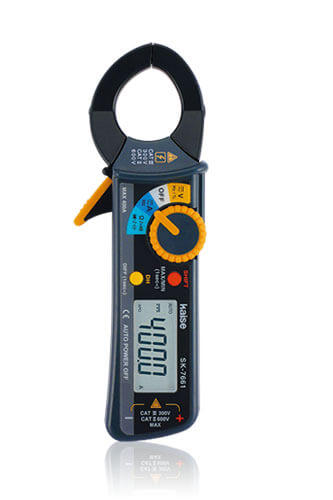

  • SK-7661 Photo
    • 27mm
    • CE

  • Applications

    • Alternator charging current measurement.
    • Battery voltage measurement.

  • Measurement Items

      • AC/DC A
      • AC/DC Current(400A)
      • AC/DC V
      • AC/DC Voltage
      • Ω
      • Resistance
      • Frequency
      • Frequency
      • Continuity Test
      • Continuity Test
      • Diode Test
      • Diode Test
      • Duty
      • Duty Cycle
      • Capacitance
      • Capacitance

  • Functions

      • MAX/MIN
      • MAX/MIN
      • DIFF
      • Difference
      • DISP HOLD
      • Display Hold
      • AUTO ZERO
      • Zero Adjustment (DCA)
      • APO
      • Auto Power Off

  • Features

    • Up to 400A AC/DC.
    • Conductor dia. : Φ27mm max.
    • Power-on Initialize (Automatic zero-adjustment function).
    • Rubber-molded rotary switch and trigger.
    • Test lead fixable on the side.
    • MAX/MIN measurement.

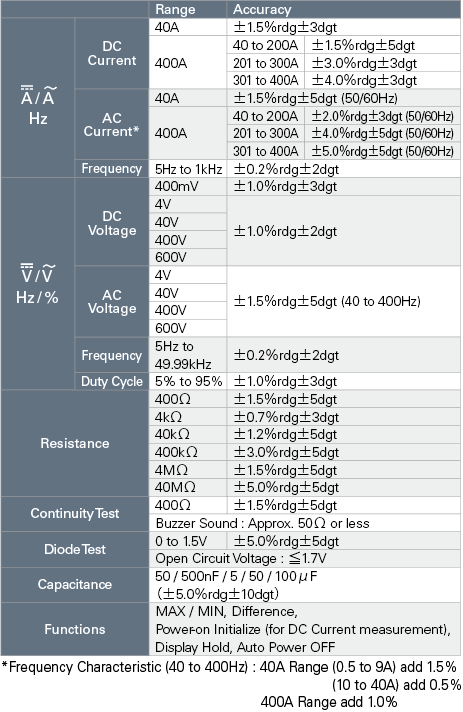

  • Specifications

    • Display (LCD)
    • 4000 count LCD, Maximum reading 4050
    • Sampling Rate
    • 3 times / sec
    • Renge Selection
    • Auto Ranging
    • Conductor Diameter
    • φ27mm Max.
    • Power Supply
    • 1.5V R03 or AAA Batteries (x2)
    • CE Mark
    • CATⅢ 300V, CATⅡ 600V and EMC
    • Dimensions & Weight
    • 170(H) x 58(W) x 27(D)mm, Approx. 160g
