mΩ Measurement for the Motors of Hybrid and Electrical Vehicles.

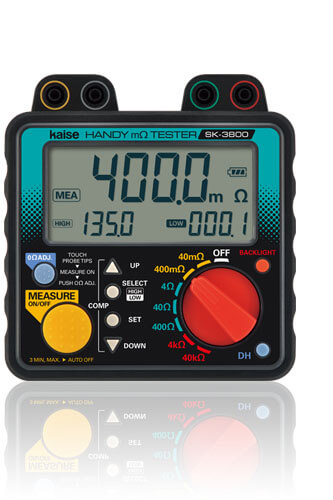

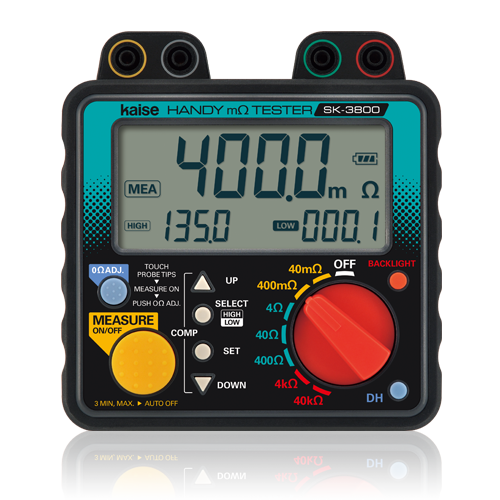

SK-3800HANDY mΩ TESTER

- Product Catalog
- Instruction Manual
Applications
- For low resistance measurement of Hybrid/Electric vehicle motors.
Measurement Items
- - 40mΩ
- - 400mΩ
- - 4Ω
- - 40Ω
- - 400Ω
- - 4kΩ
- - 40kΩ
Functions
- - Comparator
- - Backlight
- - Display Hold
- - Auto Power Off
- - Simple Dust Proof
- - Simple Water Resistant

Features
- Automotive mΩ Tester focusing on testing Hybrid and Electric Vehicles.
- Accurate Testing with 4-terminal Method.
- Handheld Unit Useful for Car Mechanics.
- Rubber Holster for Shock Protection.
- Large Backlit LCD.
- Clip-on Test Lead Tips.
- Comparator Function.
- Display Hold Function.
Specifications
- Display (LCD)
- 4199 count, maximum reading 4199, 12mm high
- Sampling Rate
- 2 times / second
- Power Supply
- 1.5V R6P or AA Batteries (x 8)
- CE Mark
- EN61326-1
- Dimensions & Weight
- 140(H)×130(W)×60(D)mm, Approx. 600g (excluding batteries)

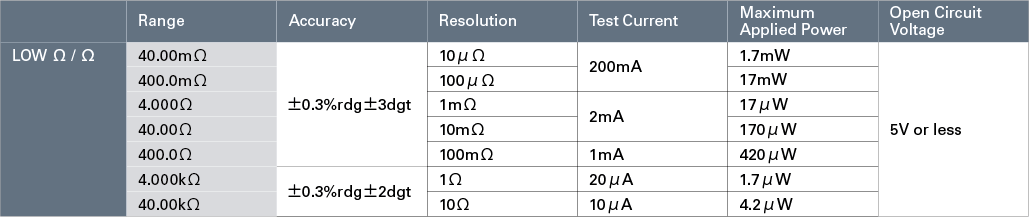

Measurement Specifications
Measurement specifications are here

Accessories
- Holster
  (attached to the main unit)
- Test Leads
  (100-71)
- Carrying Case
  (1035)
- 1.5V R6P Batteries (x8)
- F22 Spare Fuse
  (0.5A/600V) x 1
  (built-in)
- Instruction Manual
