Ignition Coil Test Just Placing the Sensor on the Module.

KG-300IGNITION ANALYZER

  • Discontinued (Feb. 18, 2025)

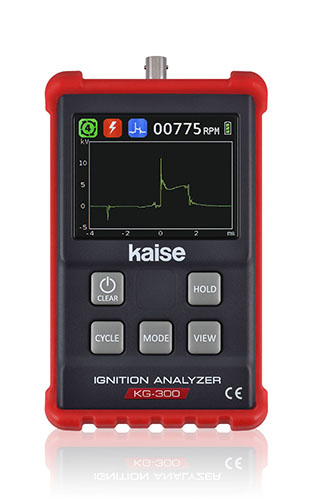

  • KG-300 Photo
  • Applications

    • Ignition coil measurement, failed coil checking and cylinders comparison.
  • Measurement Items

    • Voltage
    • Tachometer
    • Burn Time
    • Dwell
    • Ramp Time
  • Functions

    • Back Light
    • Auto Power Off
  • Features

    • Accurate ignition coil test with four measurement modes.
    • Just placing the sensor on top of the ignition module.
    • Applicable for coil on plug module and spark plug wire.
    • Powered by rechargeable battery.
    • Easy to read Color TFT display.
    • Measurement sample for reference. (manual / web)
    • Protective rubber holster.
    • With hard carrying case.
  • Specifications

    • Display (LCD)
    • Dot matrix LCD (240×128 dots), Display Size : 53mm(H)× 92mm(W)
    • Ignition Systems
    • Direct ignition, High-tension code, Wasted spark ignition systems
    • Engine Types
    • 2 and 4 stroke engine cycle
    • Power Supply
    • Rechargeable lithium battery (LiFePO4) 3.2V/1500mAh (Installed)
    • Dimensions & Weight
    • 160(H) x 99(W) x 34(D) mm, 330g (without probe)
  • Measurement Specifications

    Measurement specifications are here
  • Accessories

    • Holster Photo Holster
      (attached to the main unit)
    • 675 Photo Flexible Probe
      (675)
    • 933 Photo USB Cable
      (933)
    • 671 Photo Direct Ignition
      Sensor(671)
    • 672 Photo High Tension
      Code Sensor(672)
    • 1029 Photo Carrying Case
      (1029)
    • Instruction Manual Photo Instruction Manual
