Versatile tester with LED and 1.5V Battery tests, and Decibel (dB) measurement.

KF-23ANALOG MULTIMETER

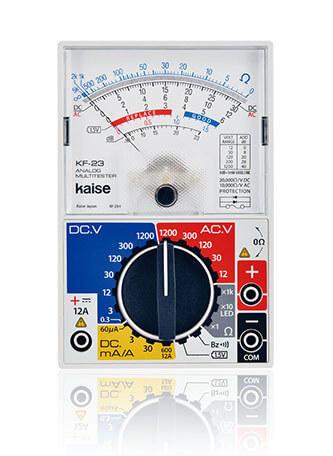

  • KF-23 Photo

  • Measurement Items

      • AC/DC V
      • AC/DC Voltage
      • DC A
      • DC Current
      • Ω
      • Resistance
      • Continuity Tests
      • Continuity Test
      • dB
      • Decibel
      • BATT
      • Battery Test
      • LED
      • LED Test

  • Features

    • 12A DC measurement.
    • Easy-to-read scale plate with meter mirror.
    • Gold-plated test leads.
    • LED test and 1.5V battery test.
    • Decibel measurement available.

  • Specifications

    • Power Supply
    • 1.5V R6P or AA Battery (x2)
    • Dimensions & Weight
    • 136(H) x 90(W) x 30(D) mm, Approx. 230g

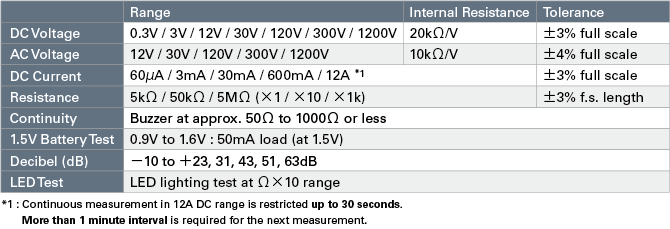

  • Measurement Specifications

    Measurement specifications are here

  • Accessories

    • 100-77 Photo Test Leads
      (100-77)
    • 1020 Photo Carrying Case
      (1020)
    • Batteries Photo 1.5V R6P
      Batteries (x 2)
    • Fuse Photo Spare Fuses F15
      (0.75A/250V) (x 1)
    • Instruction Manual Photo Instruction Manual
