Automotive Digital Multimeter

Extremely Versatile Automotive Digital Multimeter.

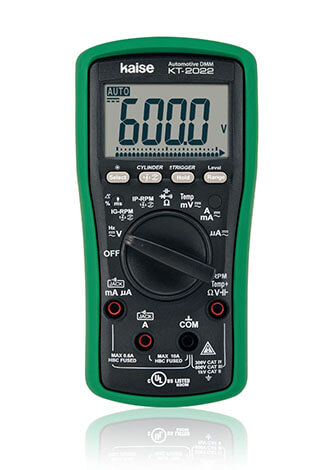

CE KT-2022 Photo

KT-2021

Discontinued

succeeding model : KT-2022

Applications

  • Battery voltage measurement.
  • RPM measurement. (except for rotary and diesel engines & vehicle with MSD or MDI)
  • Alternator charging current measurement. (with optional clamp adapter)

Features

  • For various automotive measurements. (Battery voltage / RPM / Injection pulse width / Alternator charging current measurement / Temperature)
  • Large LCD with backlight and bar graph.
  • Display hold, Auto power off functions.
  • Error input warning.
  • Equipped with holster and hard carrying case.

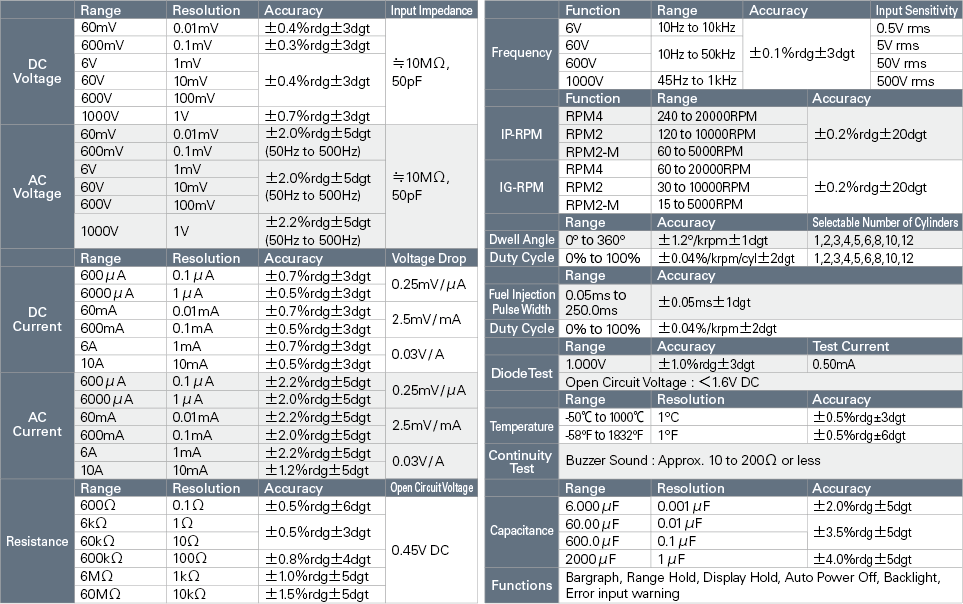

General Specifications

  • Display (LCD) :
  • 6000 count LCD
  • Sampling Rate :
  • (Numerical) 5 times / sec, (Bargraph) 40 times / sec
  • Renge Selection :
  • Auto / Manual Ranging
  • Power Supply :
  • 1.5V R03 or AAA Batteries (x 2)
  • CE Mark:
  • CATⅡ1000V, CATⅢ600V, CATⅣ300V AC and DC
  • Dimensions & Weight :
  • 161(H) × 80(W) × 50(D)mm, Approx. 340g
  • Accessories :
  • Holster, 100-66 Test Leads, 653 RPM Sensor, 654 RPM Sensor, 818-02 Temperature Probe, 943 Alligator Clip, 1024 Carrying Case, 1.5V R03 Batteries (x 2), Spare Fuses F38 (11A/1000V) (x 1), Spare Fuses F39 (0.4A/1000V) (x 1), Instruction Manual
  • Optional Accessories :
  • 660 AC / DC Clamp Adapter, 100-41 Test Lead Kit, 100-62 Test Lead Set, 944 Test Pin, 946 Battery Clip, 793 Coil-Type Contact Pin
